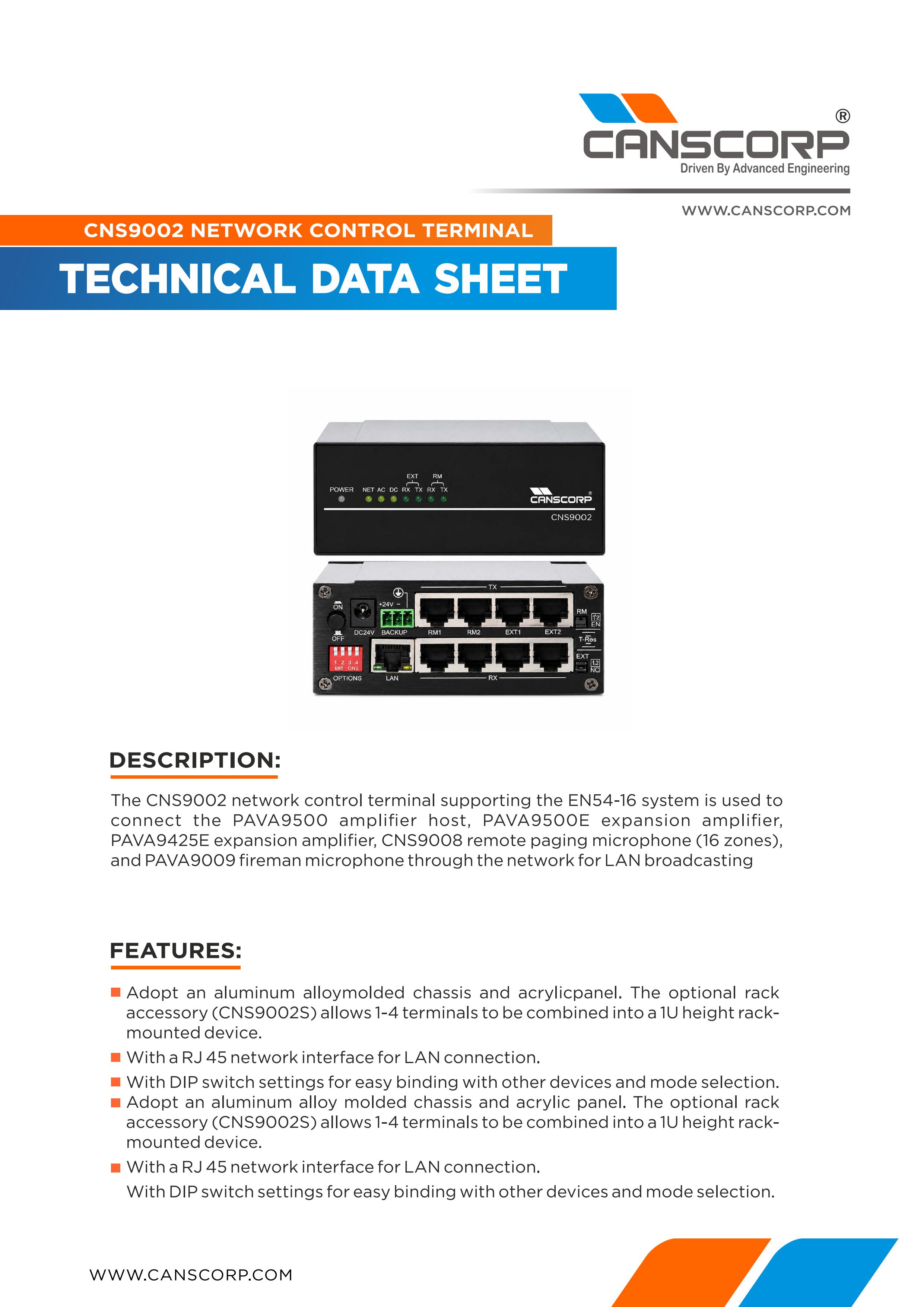

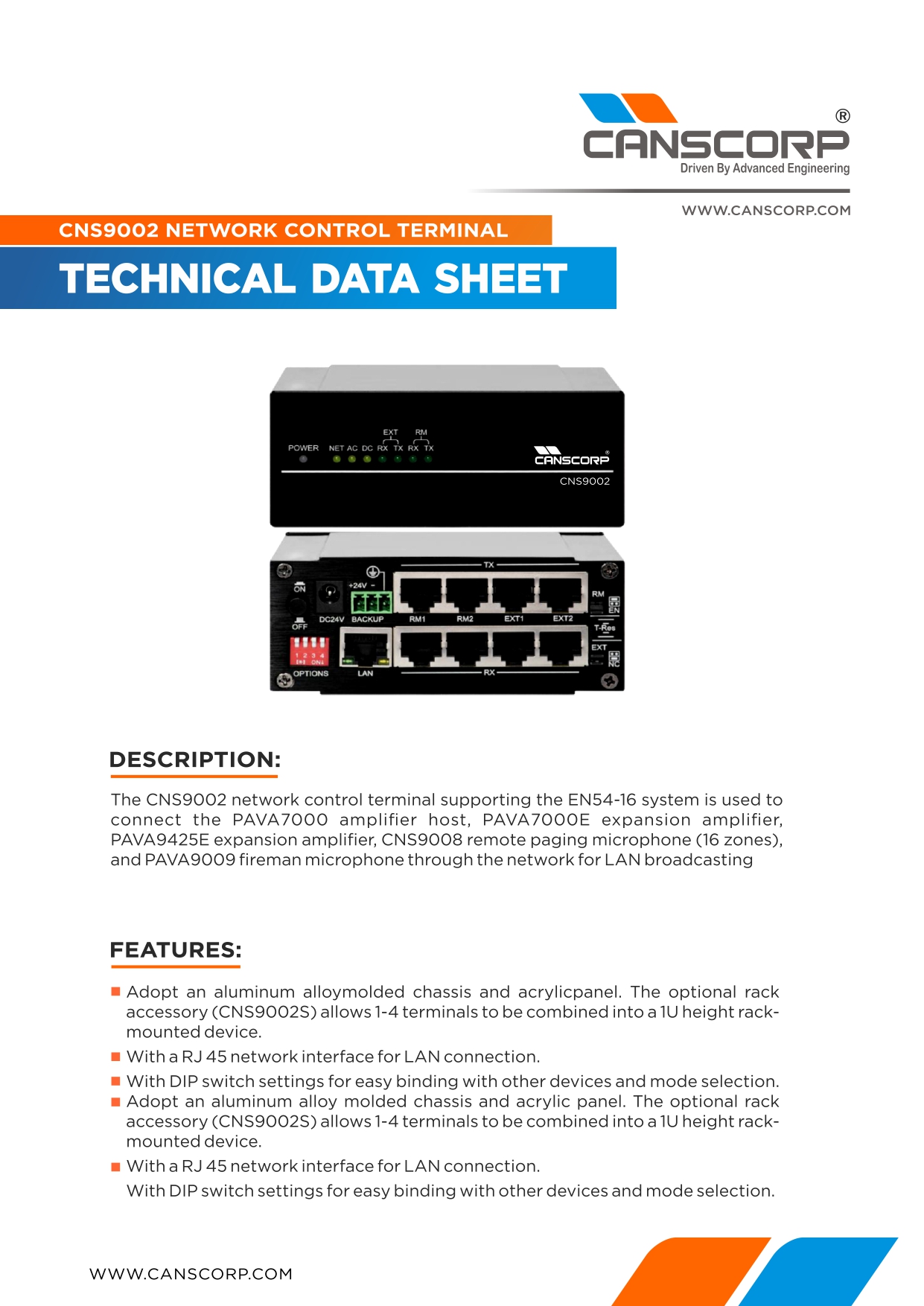

CNS9002 NETWORK CONTROL TERMINAL

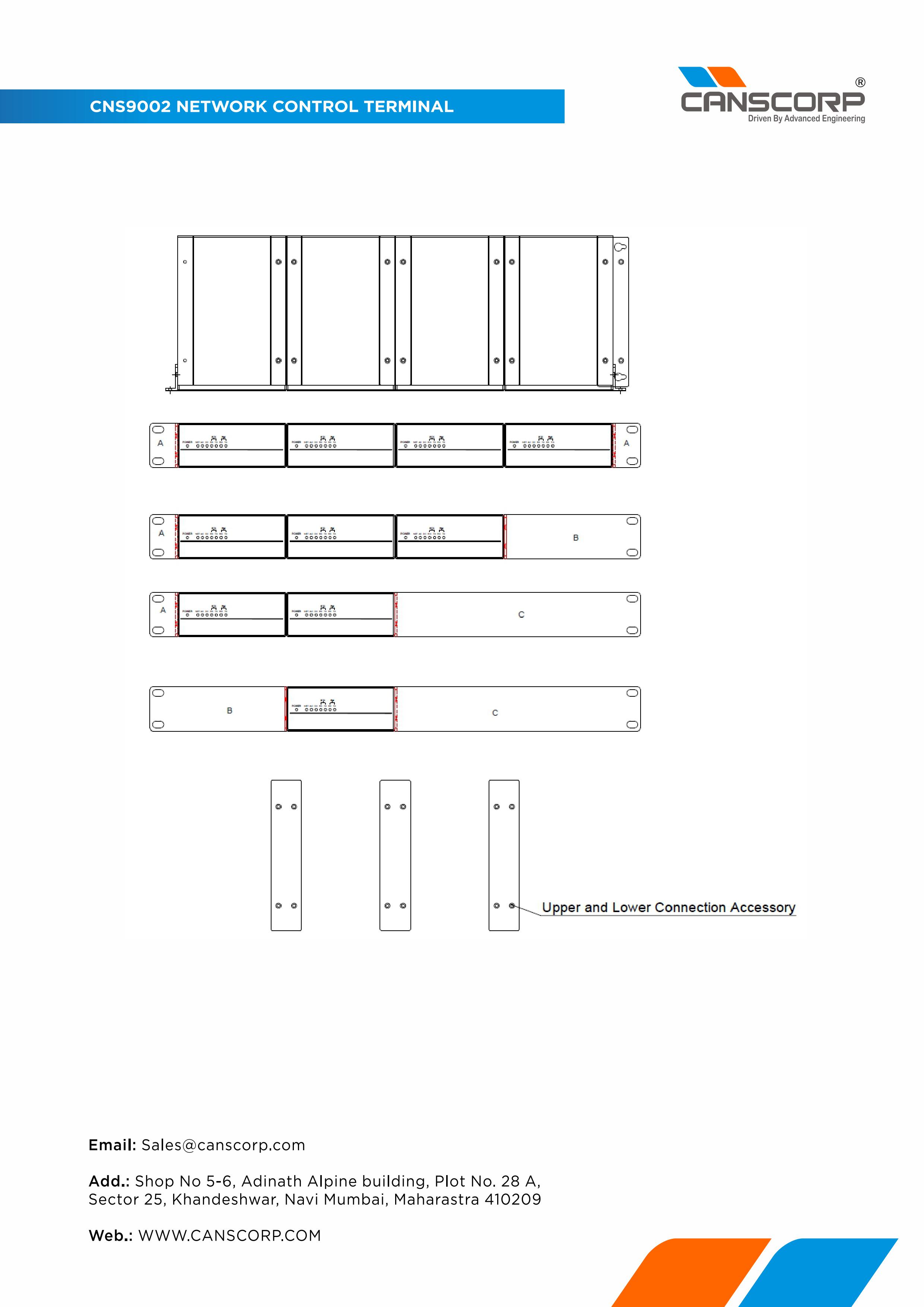

- Adopt an aluminum alloymolded chassis and acrylicpanel. The optional rack accessory (CNS9002S) allows 1-4 terminals to be combined into a 1U height rack-mounted device.
- With a RJ 45 network interface for LAN connection.
- With DIP switch settings for easy binding with other devices and mode selection.
- Adopt an aluminum alloy molded chassis and acrylic panel. The optional rack accessory (CNS9002S) allows 1-4 terminals to be combined into a 1U height rack-mounted device.
- With a RJ 45 network interface for LAN connection.
- With DIP switch settings for easy binding with other devices and mode selection.

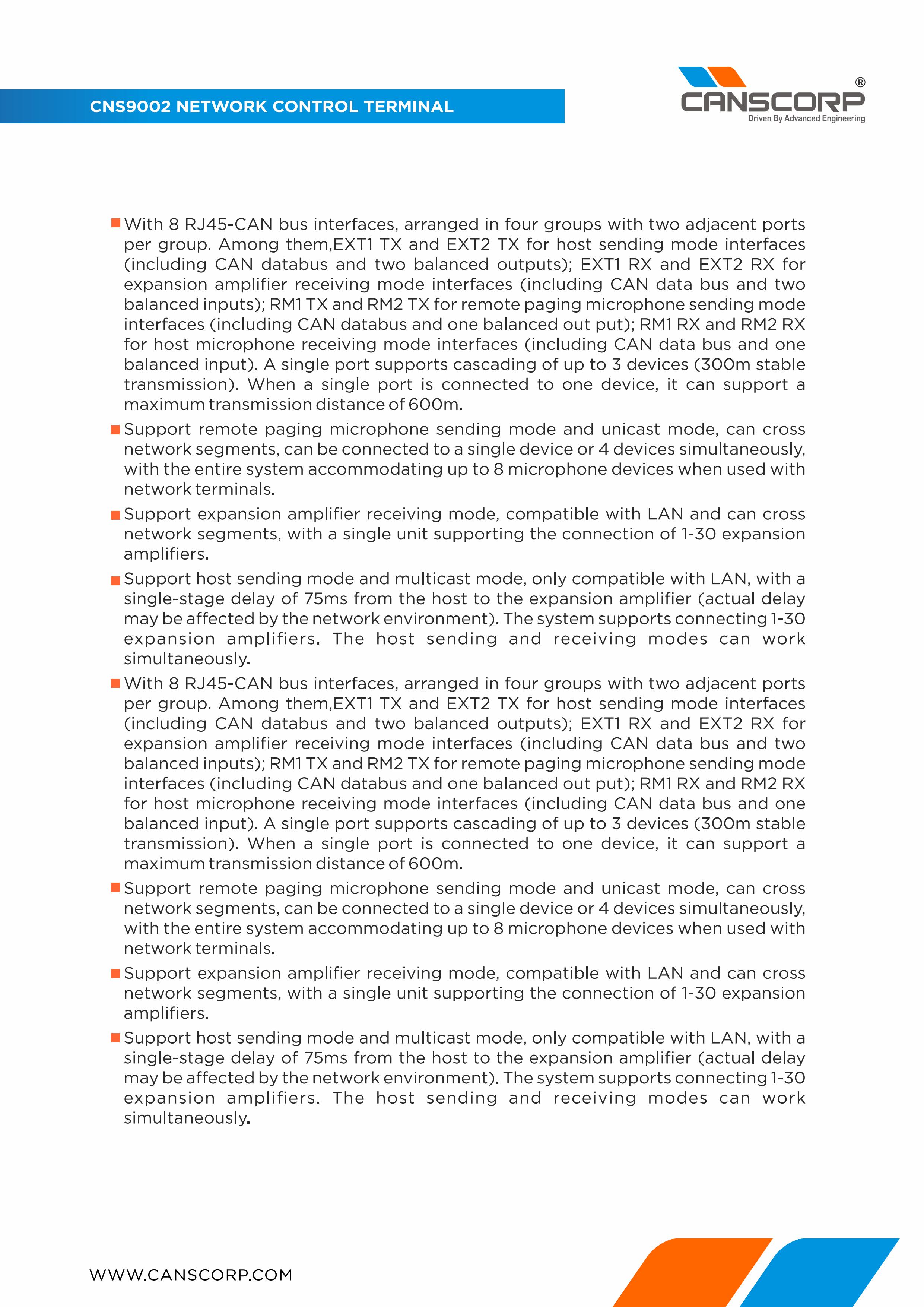

- With 8 RJ45-CAN bus interfaces, arranged in four groups with two adjacent ports per group. Among them, EXTI TX and EXT2 TX for host sending mode interfaces (including CAN databus and two balanced outputs); EXT1 RX and EXT2 RX for expansion amplifier receiving mode interfaces (including CAN data bus and two balanced inputs); RM1 TX and RM2 TX for remote paging microphone sending mode interfaces (including CAN databus and one balanced out put); RM1 RX and RM2 RX for host microphone receiving mode interfaces (including CAN data bus and one balanced input). A single port supports cascading of up to 3 devices (300m stable transmission). When a single port is connected to one device, it can support a maximum transmission distance of 600m.
- Support remote paging microphone sending mode and unicast mode, can cross network segments, can be connected to a single device or 4 devices simultaneously. with the entire system accommodating up to 8 microphone devices when used with network terminals.
- Support expansion amplifier receiving mode, compatible with LAN and can cross network segments, with a single unit supporting the connection of 1-30 expansion amplifiers.
- Support host sending mode and multicast mode, only compatible with LAN, with a single-stage delay of 75ms from the host to the expansion amplifier (actual delay may be affected by the network environment). The system supports connecting 1-30 expansion amplifiers. The host sending and receiving modes can work simultaneously.
- With 8 RJ45-CAN bus interfaces, arranged in four groups with two adjacent ports per group.
- Among them, EXTI TX and EXT2 TX for host sending mode interfaces (including CAN databus and two balanced outputs); EXTI RX and EXT2 RX for expansion amplifier receiving mode interfaces (including CAN data bus and two balanced inputs); RM1 TX and RM2 TX for remote paging microphone sending mode interfaces (including CAN databus and one balanced out put); RM1 RX and RM2 RX for host microphone receiving mode interfaces (including CAN data bus and one balanced input). A single port supports cascading of up to 3 devices (300m stable transmission). When a single port is connected to one device, it can support a maximum transmission distance of 600m.
- Support remote paging microphone sending mode and unicast mode, can cross network segments, can be connected to a single device or 4 devices simultaneously. with the entire system accommodating up to 8 microphone devices when used with network terminals.
- Support expansion amplifier receiving mode, compatible with LAN and can cross network segments, with a single unit supporting the connection of 1-30 expansion amplifiers.
Support host sending mode and multicast mode, only compatible with LAN, with a single-stage delay of 75ms from the host to the expansion amplifier (actual delay may be affected by the network environment). The system supports connecting 1-30 expansion amplifiers. The host sending and receiving modes can work simultaneously.
