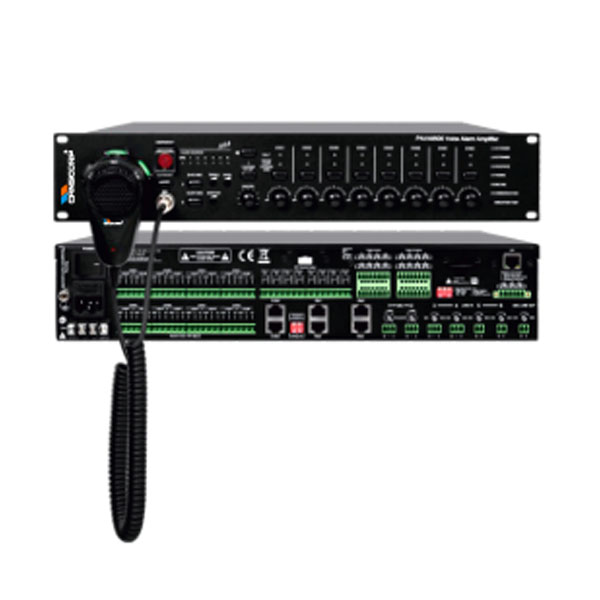

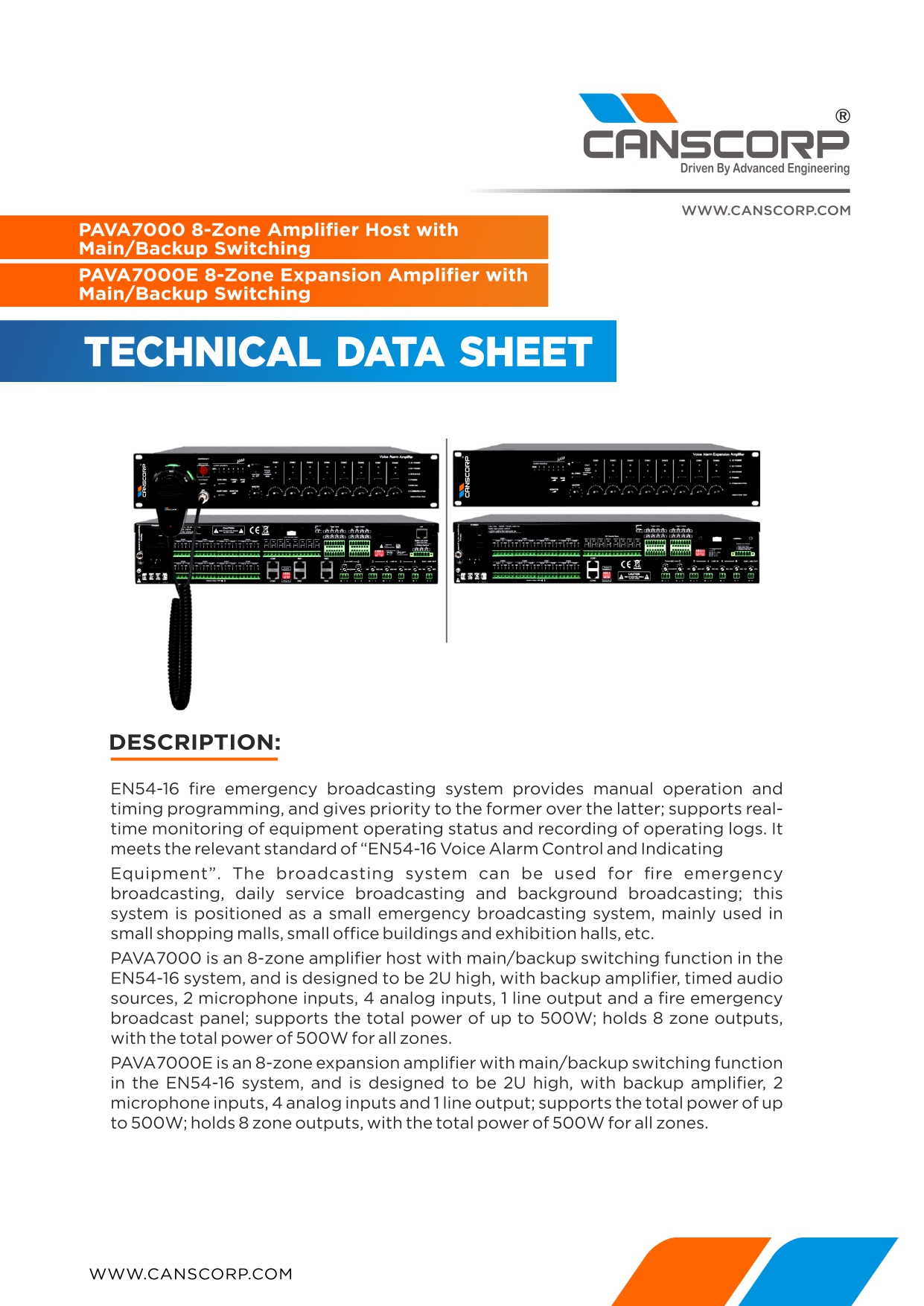

PAVA7000 8-ZONE AMPLIFIRE HOST WITH MAIN/BACKUP SWITCHING

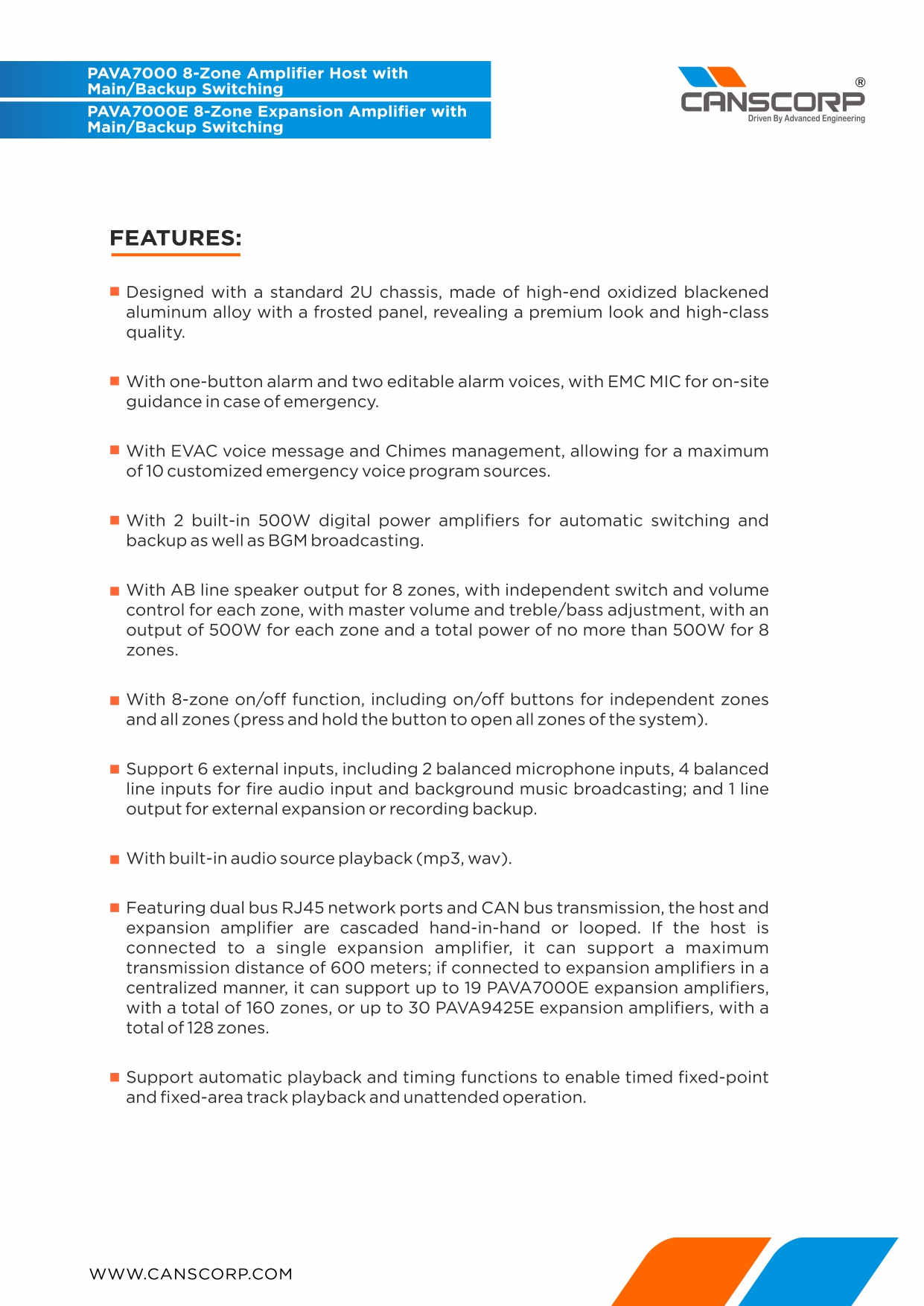

- Designed with a standard 2U chassis, made of high-end oxidized blackened aluminum alloy with a frosted panel, revealing a premium look and high-dass quality.
- With one-button alarm and two editable alarm voices, with EMC MIC for on-site guidance in case of emergency.
- With EVAC voice message and Chimes management, allowing for a maximum of 10 customized emergency voice program sources.
- With 2 built-in 500W digital power amplifiers for automatic switching and backup as well as BGM broadcasting.
- With AB line speaker output for 8 zones, with independent switch and volume control for each zone, with master volume and treble/bass adjustment, with an output of 500W for each zone and a total power of no more than 500W for 8 zones.
- With 8-zone on/off function, induding on/off buttons for independent zones and all zones (press and hold the button to open all zones of the system).
- Support 6 external inputs, including 2 balanced microphone inputs, 4 balanced line inputs for fire audio input and background music broadcasting, and 1 line output for external expansion or recording backup.
- With built-in audio source playback (mp3, wav).
- Featuring dual bus RJ45 network ports and CAN bus transmission, the host and expansion amplifier are cascaded hand-in-hand or looped. If the host is connected to a single expansion amplifier, it can support a maximum transmission distance of 600 meters; if connected to expansion amplifiers in a centralized manner, it can support up to 19 PAVA9500E expansion amplifiers, with a total of 160 zones, or up to 30 PAVA9425E expansion amplifiers, with a total of 128 zones.
- Support automatic playback and timing functions to enable timed fixed-point and fixed-area track playback and unattended operation.
- Designed with a standard 2U chassis, made of high-end oxidized blackened aluminum alloy with a frosted panel, revealing a premium look and high-dass quality.
- With one-button alarm and two editable alarm voices, with EMC MIC for on-site guidance in case of emergency.
- With EVAC voice message and Chimes management, allowing for a maximum of 10 customized emergency voice program sources.
- With 2 built-in 500W digital power amplifiers for automatic switching and backup as well as BGM broadcasting.
- With AB line speaker output for 8 zones, with independent switch and volume control for each zone, with master volume and treble/bass adjustment, with an output of 500W for each zone and a total power of no more than 500W for 8 zones.
- With 8-zone on/off function, induding on/off buttons for independent zones and all zones (press and hold the button to open all zones of the system).
- Support 6 external inputs, including 2 balanced microphone inputs, 4 balanced line inputs for fire audio input and background music broadcasting, and 1 line output for external expansion or recording backup.
- With built-in audio source playback (mp3, wav).
- Featuring dual bus RJ45 network ports and CAN bus transmission, the host and expansion amplifier are cascaded hand-in-hand or looped. If the host is connected to a single expansion amplifier, it can support a maximum transmission distance of 600 meters; if connected to expansion amplifiers in a centralized manner, it can support up to 19 PAVA9500E expansion amplifiers, with a total of 160 zones, or up to 30 PAVA9425E expansion amplifiers, with a total of 128 zones.
- Support automatic playback and timing functions to enable timed fixed-point and fixed-area track playback and unattended operation.
